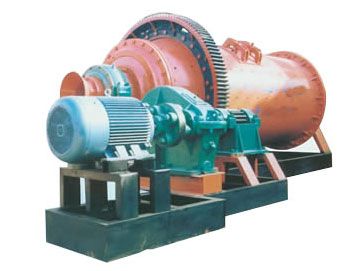

圆锥格子型球磨机
[所属分类:球磨机系列] [发布时间:2010-4-30] [发布人:管理员] [阅读次数:] [返回]
| 型号 | 筒体直径 mm | 筒体长度 mm | 筒体转速 r.p.m | 电机型号 | 电机功率(kw) | 电机转速r.p.m | 长mm | 宽mm | 高mm | 有效容积(m3) | 最大装球量t | 重量kg |
| GZM0912 | φ900/φ675 | 900/300 | 41 | Y160L-6 | 11 | 970 | 3271 | 1815 | 1400 | 0.65 | 1 | 4263 |
| GZM0916 | φ900/φ675 | 1350/300 | 41 | Y180L-6 | 15 | 970 | 3786 | 1815 | 1400 | 0.83 | 1.35 | 4844 |
| GZM0918 | φ900/φ675 | 1500/300 | 41 | 15 | 970 | 3936 | 1815 | 1400 | 0.91 | 1.5 | 5100 | |
| GZM0921 | φ900/φ675 | 1800/300 | 41 | Y200L1-6 | 18.5 | 970 | 4301 | 1815 | 1400 | 1.07 | 1.7 | 5420 |
| GZM1216 | φ1200/φ900 | 1200/400 | 36.4 | 22 | 970 | 3912 | 2076 | 1062 | 1.67 | 2.87 | 6500 | |
| GZM1220 | φ1200/φ900 | 1600/400 | 36.75 | Y225M-6 | 30 | 980 | 4443 | 2076 | 1062 | 2.14 | 3.68 | 7300 |
| GZM1224 | φ1200/φ900 | 2000/400 | 36.75 | Y250M-6 | 37 | 980 | 5088 | 2138 | 1670 | 2.61 | 4.49 | 9300 |
| GZM1226 | φ1200/φ900 | 2200/400 | 36.75 | Y250M-6 | 37 | 980 | 5288 | 2138 | 1670 | 2.84 | 4.88 | 9647 |
| GZM1228 | φ1200/φ900 | 2400/400 | 36.75 | Y280S-6 | 45 | 980 | 5558 | 2168 | 1670 | 3.07 | 5.28 | 10160 |
| GZM1520 | φ1500/φ1200 | 1500/500 | 30.9 | Y280M-8 | 45 | 740 | 4825 | 2785 | 2120 | 2.84 | 4.88 | 12891 |
| GZM1523 | φ1500/φ1200 | 1800/500 | 30.9 | YR280S-8 | 55 | 723 | 5335 | 2785 | 2120 | 3.29 | 5.66 | 13913 |
| GZM1526 | φ1500/φ1200 | 2100/500 | 30.9 | YR280S-8 | 55 | 723 | 5635 | 2785 | 2120 | 3.74 | 6.43 | 14664 |
| GZM1529 | φ1500/φ1200 | 2400/500 | 30.9 | JR117-8 | 80 | 725 | 6173 | 2785 | 2120 | 4.91 | 7.2 | 17087 |
| GZM1535 | φ1500/φ1200 | 3000/500 | 30.9 | JR117-8 | 80 | 725 | 6773 | 2785 | 2120 | 5.08 | 8.74 | 18590 |
| GZM1545 | φ1500/φ1200 | 4000/500 | 30.9 | JR125-8 | 110 | 725 | 7893 | 2785 | 2120 | 6.57 | 11.3 | 21423 |
| GZM2131 | φ2100/φ1670 | 2500/600 | 24.05 | JR128-8 | 155 | 725 | 7579 | 3750 | 2825 | 9 | 16.5 | 33930 |
| GZM2136 | φ2100/φ1670 | 3000/600 | 24.05 | JR136-8 | 180 | 735 | 7990 | 4264 | 3183 | 10.45 | 19.2 | 378201 |
| GZM2141 | φ2100/φ1670 | 3500/600 | 24.05 | JR137-8 | 210 | 735 | 8680 | 4264 | 3183 | 11.9 | 21.5 | 44626 |
| GZM2145 | φ2100/φ1670 | 3700/750 | 23.3 | JR138-8 | 245 | 735 | 9556 | 4274 | 3230 | 12.5 | 22.6 | 48571 |
| GZM2727 | φ2700/φ2100 | 2285/550 | 21.6 | JR138-8 | 245 | 735 | 8095 | 4836 | 3490 | 12.9 | 25.8 | 59333 |
| GZM2733 | φ2700/φ2287 | 2750/550 | 21.6 | JR138-8 | 245 | 735 | 8443 | 4897 | 4385 | 15.9 | 28 | 67302 |
| GZM2736 | φ2700/φ2287 | 3050/550 | 21.6 | JR157-8 | 320 | 750 | 8735 | 4897 | 17.5 | 33.2 | 70365 | |
| GZM2742 | φ2700/φ2287 | 3650/550 | 20.76 | JR158-8 | 380 | 750 | 9765 | 5150 | 3640 | 20 | 41 | 76842 |
| GZM2740 | φ2700/φ2287 | 3450/550 | 20.76 | JR158-8 | 380 | 750 | 9565 | 5150 | 3620 | 19.7 | 38.2 | 74982 |
